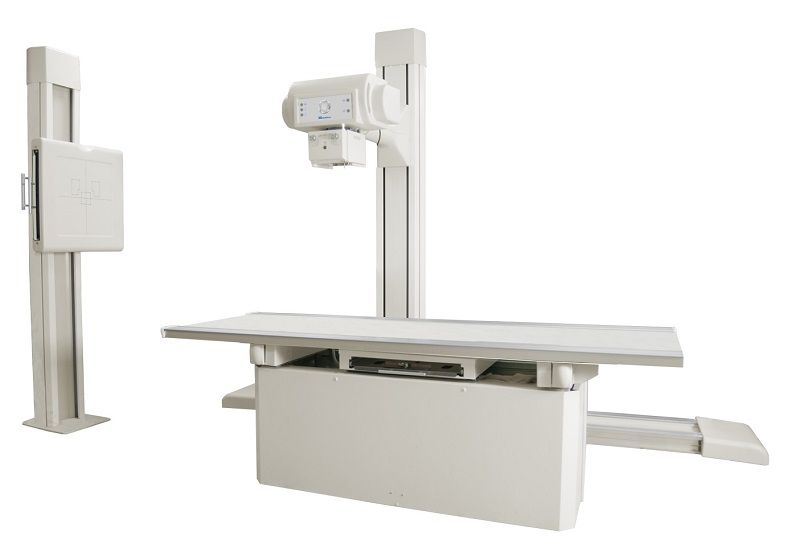

Model: YSDR320G
32KW/400mA
4-way direction diagnosis table Bucky stand Power: 50Hz/60Hz, work with 380V
Max. kW: 32kW
Power: 50Hz/60Hz, wire diameter>4mm2, internal resistance<0.5Ω,can work with either 220V or 380V.
mA: 10~400 mAS: 0.1~320
KV: 40~125kV, stepping by 1kV Exposure Time 0.001~10s adjustable: stepping by 1ms
Focus: Dual focus: 1.0*1.0mm/2.0*2.0mm Rotating Speed & Heat Capacity: 2800prm/1300kHU
Inverter Frequency 50kHZ~220kHZ
Tube Movement Up & down lift, left & right
