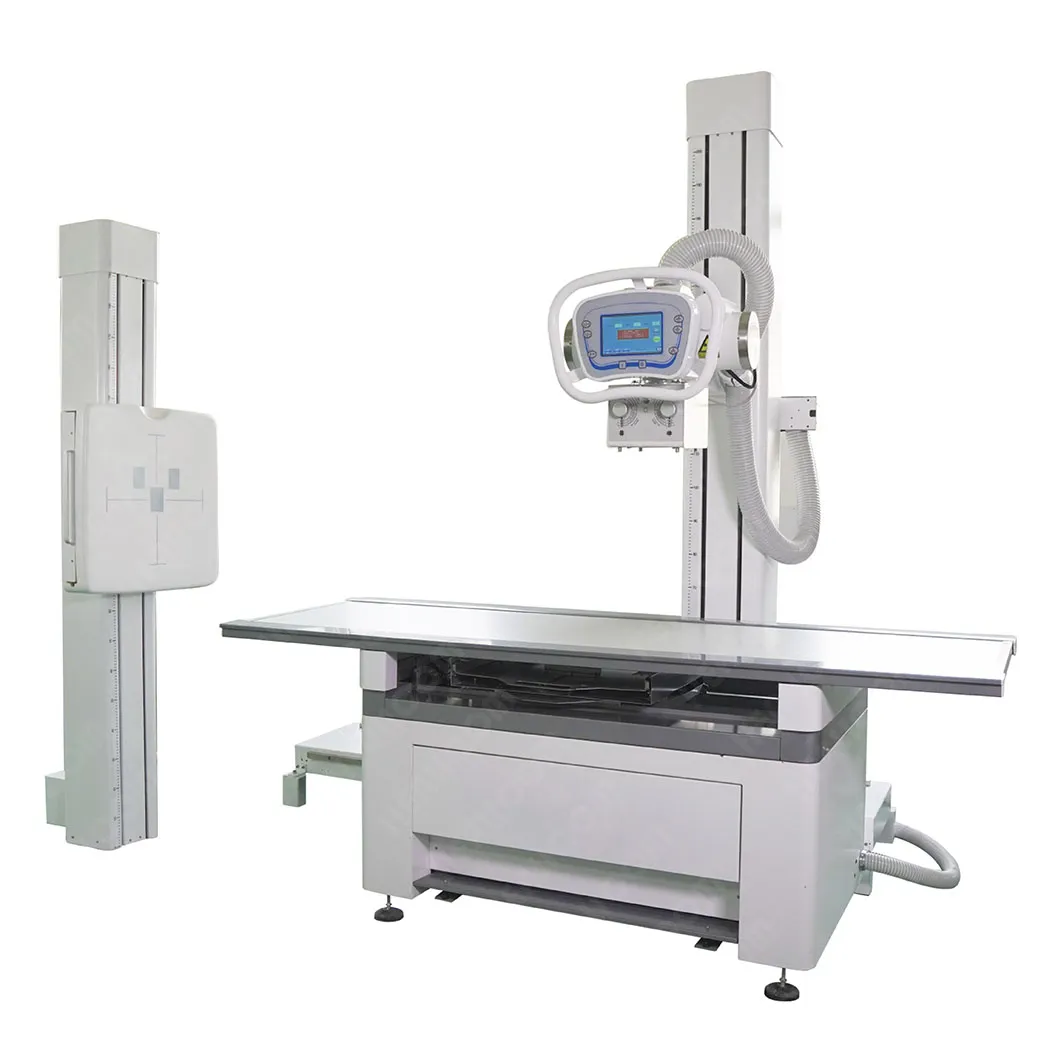

Model: YSDR320D
32KW/400mA
4-way direction diagnosis table Bucky stand 17*17inch wired flat panel detector Computer with professional medical software with multi- languages available Power: 50Hz/60Hz, work with 380V
Max. kW: 32kW
Power: 50Hz/60Hz, wire diameter>4mm2, internal resistance<0.5Ω,can work with either 220V or 380V.
mA: 10~400 mAS: 0.1~320
KV: 40~125kV, stepping by 1kV Exposure Time 0.001~10s adjustable: stepping by 1ms
Focus: Dual focus: 1.0*1.0mm/2.0*2.0mm Rotating Speed & Heat Capacity: 2800prm/1300kHU
Inverter Frequency 50kHZ~220kHZ
Tube Movement Up & down lift, left & right rotation
Column Left & right movable Radiography Table Four-way floating
Flat Panel Detector Amorphous silicon cesium iodide
Detector Size 17*17 inch Pixel Resolution 3072*3072 Pixel Pitch 139um
Imaging Time <8s A/D Conversion 16bits
Spatial Resolution 3.6lp/mm Size 460*460*15mm
Interface Wired (Wireless is optional)
Software Professional medical software with multi- languages available
Workstation Intel i5 CPU, 8G memory，2G card，
