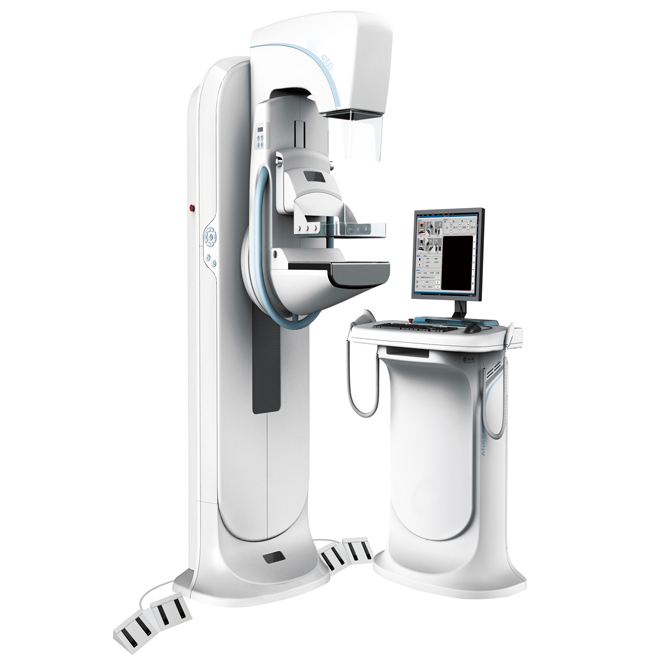

Model: YSX- DM600
Digital Mammography X-ray Machine with seperate workstation
X-ray Generator
Definition Complete Solid-state High-frequency High-voltage Generator.
Generator Type High Frequency Inverter 80kHz Input Power Single Phase 220VAC, 50/60Hz Radiographic Ratings Large Focal Point 20- 35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs Power Rating 6.2kW
X-ray Tube
Model IAE C339V
Focal Spot Size Dual Focus 0.1/ 0.3mm Target Material Molybdenum (Mo) Port Material Beryllium (Be)
High-speed Anode Drive 3000 /10000 rpm Target Angle 10°/15°
Anode Heat Storage 225KJ (300KHU) Anode Cooling Air Cooling
Filtration Mo（0.03mm）
Radiographic Stand
U-arm Vertical Movement 560mm
U-arm Rotation Automatic return function by one key
Rotations Deg +90°～-90°
Compressor The compressor is automatically released after the exposure is completed Compressor Max. Pressure 200N
Compressor Max. Travel 156mm
